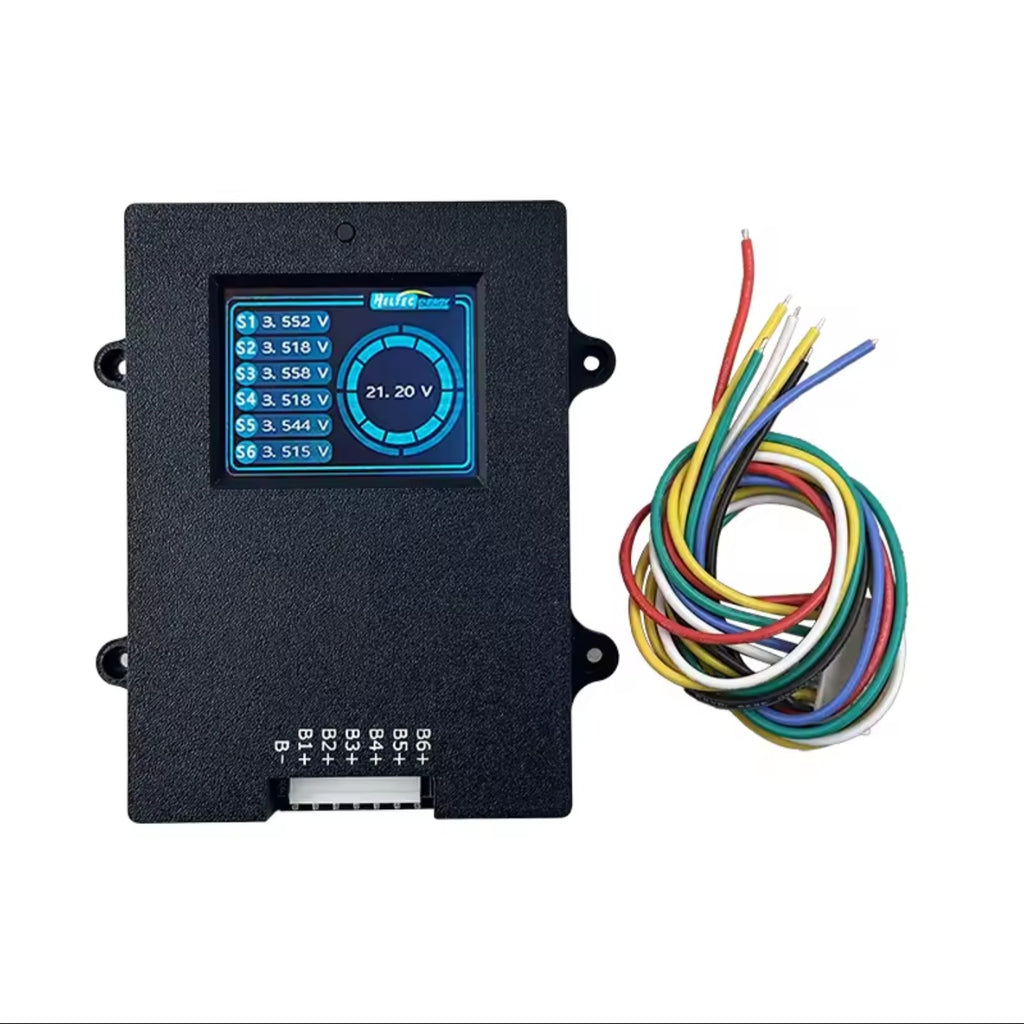

6S 5A Active Balancer with Voltage Display Lifepo4 Equalizer Lipo/LTO/Lithium Titanate Battery Voltage Tester

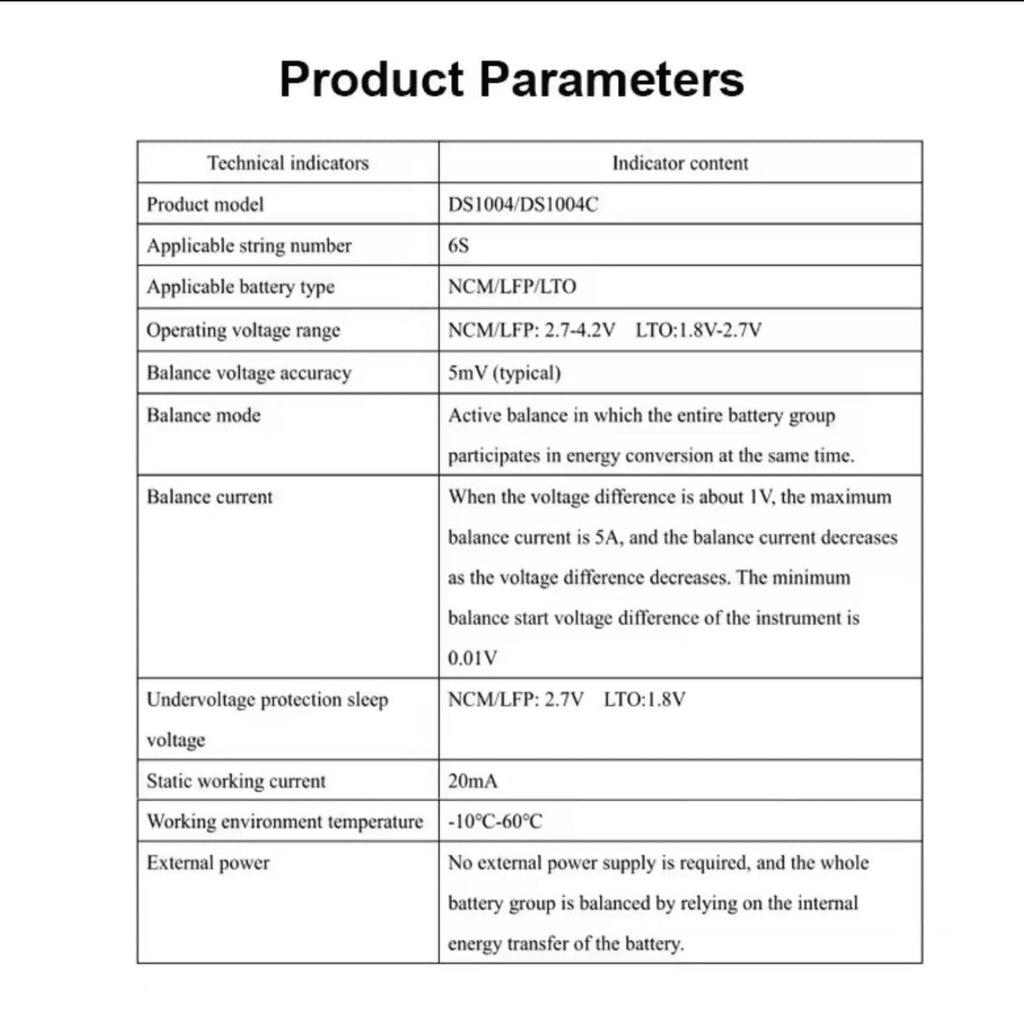

Technical indicators

Product model

DS1004/DS1004C

Applicable string number

6S

Applicable battery type

NCM/LFP/LTO

Operating voltage range

NCM/LFP: 2.7-4.2V LTO:1.8V-2.7V

Balance voltage accuracy

5mV (typical)

Balance mode

Active balance in which the entire battery group

participates in energy conversion at the same time.

Balance current

When the voltage difference is about 1 V. the maximum

balance current is 5A, and the balance current decreases

as the voltage difference decreases. The minimum

balance start voltage difference of the instrument is

0.01 v

Undervoltage protection sleep voltage

NCM/LFP: 2.7V TO: 1.8V

Static working current

20mA

Working environment temperature

-10°C-60°C

External power

No external power supply is required, and the whole

battery group is balanced by relying on the internal

energy transfer of the battery.

Precautions for Use

1.During use, the design parameters and usage conditions must be followed. The parameters of this specification must not be violated Otherwise, the instrument may be damaged and the battery pack may be damaged.

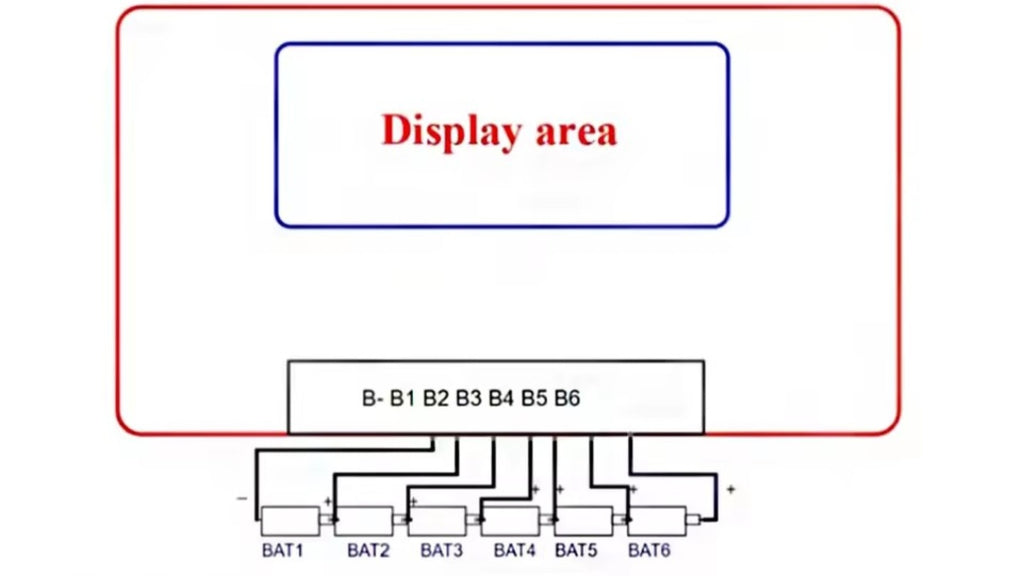

2.During use, the cables must be connected to the battery in the order of the instructions. After checking, connect the instrument.

3.The product will generate a certain amount of heat during use. Avoid using the product in a high temperature environment

4.If any abnormality occurs during use, please stop using it immediately, return it to the original factory or ask a professionak maintenance person to repair it.

5.This balancer has undergone a lot of reliability tests, and its reliability is much higher than that of general equalizers on the market. At the same time, the process of the battery cell must be guaranteed ta minimize the occurrence of combustion.
