Audiotec Fischer Conductor Control REMOTE CONTROL FOR HELIX & MATCH DSP

Audiotec Fischer Conductor REMOTE CONTROL FOR HELIX & MATCH DSP

we have this for Control input and SCP input , if you want SCP input please message or the Control input will be shipped - we do have another listing for the SCP if needed or message to say you want the NEWER SCP version

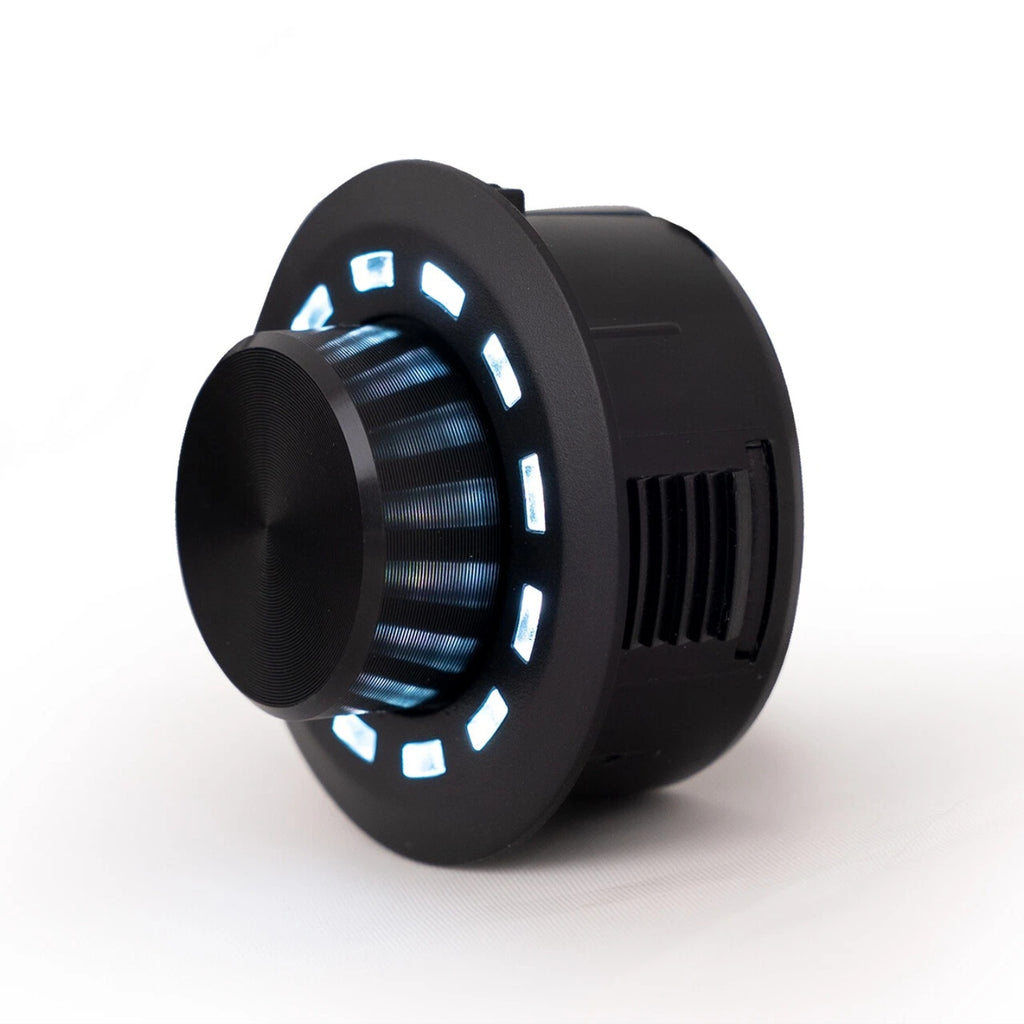

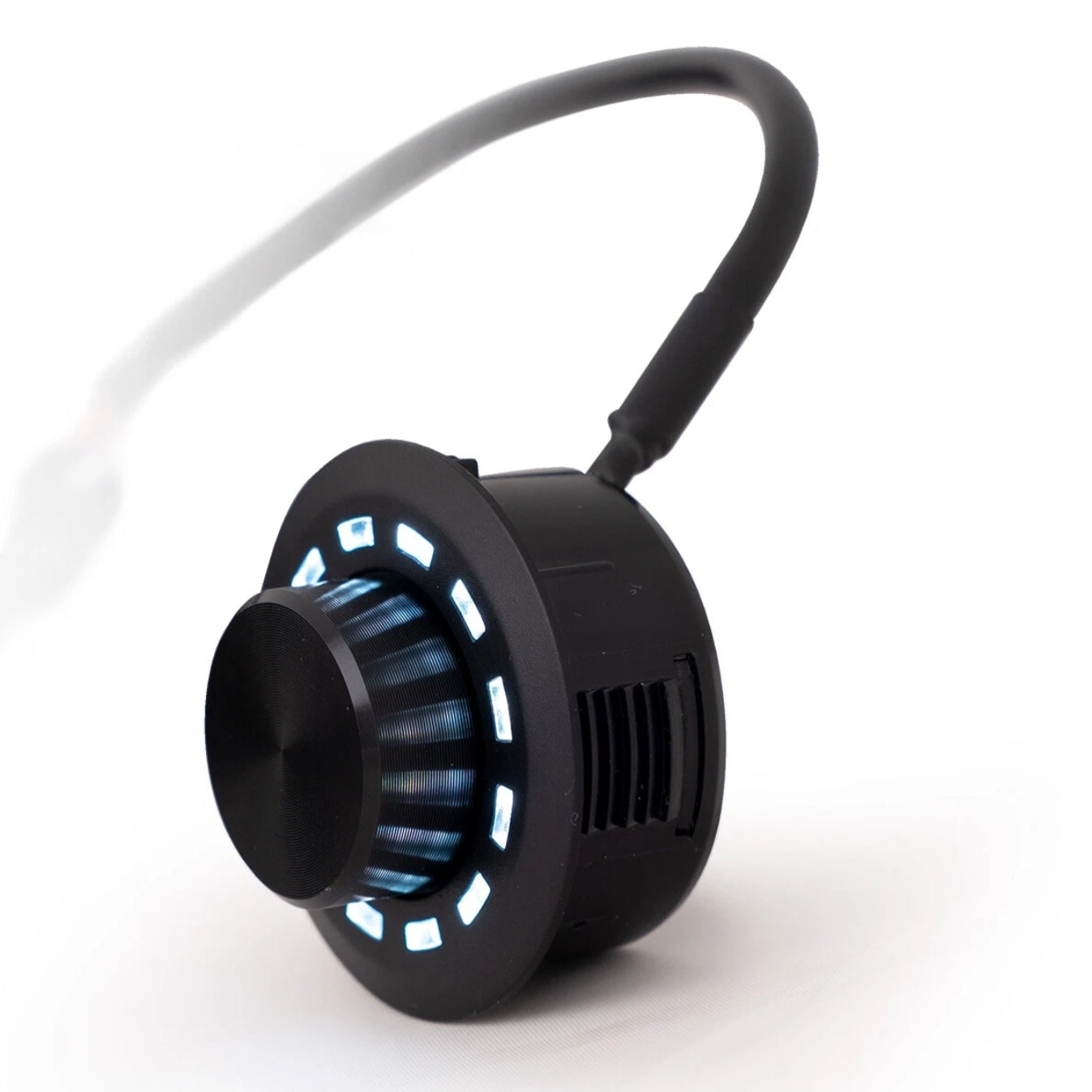

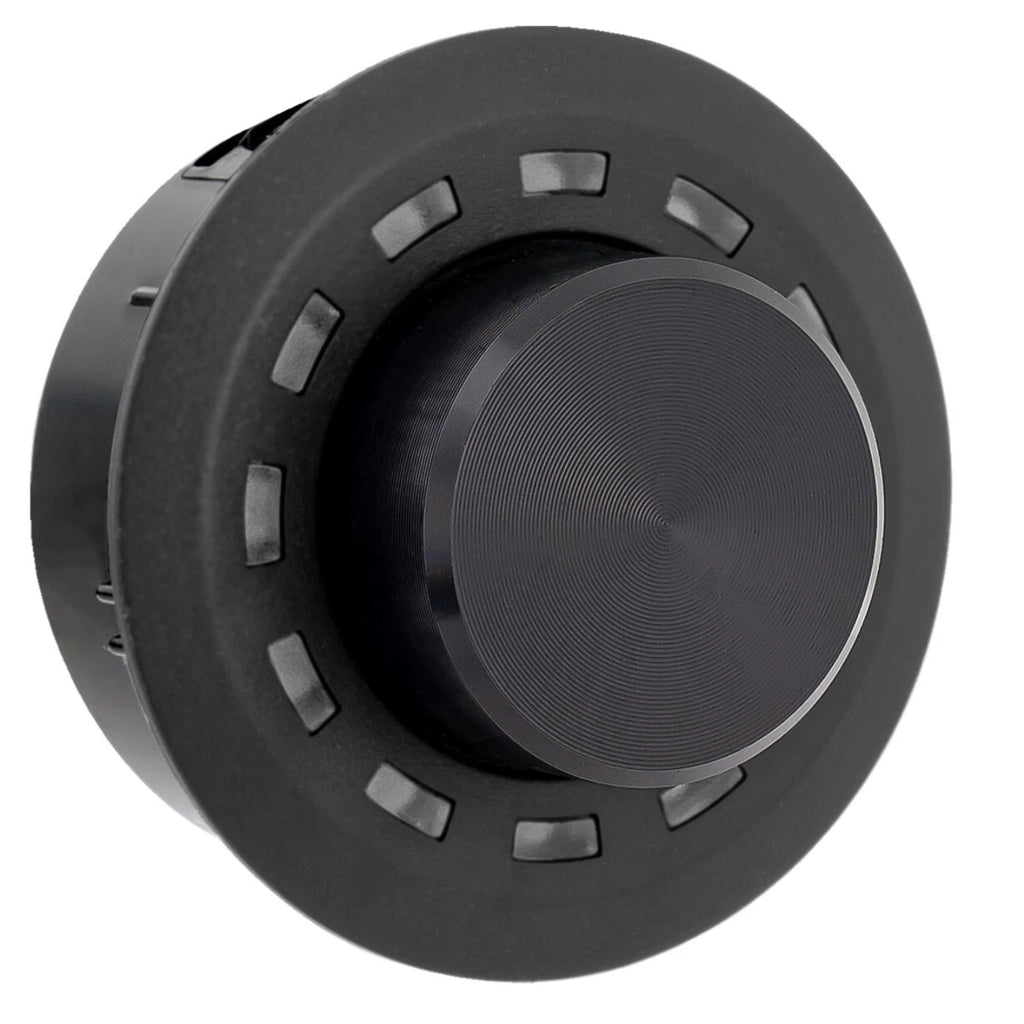

CONDUCTOR

One-touch remote control

The CONDUCTOR combines design and functionality in perfection. With just one knob you have all important functions of your (DSPs) sound system fully under control – from volume adjustment, signal source selection and setup change up to the control of an optional Bluetooth module.

Tailor-made for your needs

The CONDUCTOR can always be optimally adapted to your needs – whether as a simple subwoofer remote or as a control unit for complex system configurations. For example, two playback zones with different volumes: music for the parents in the front and a radio play for the children in the back.

All signal sources under control

With the CONDUCTOR you can manage all your connected signal sources in no time at all. For example, use your smartphone as a digital media source and intuitively control its playback (play / pause, track forward / back) and volume in combination with the optional Bluetooth Extension Card.

Sound Setup switch according to your music taste

Manage different optimized sound setups of your DSP for rock, pop, classic or absolute pure sound and enjoy your music always with optimal sound quality.

Seamless integration

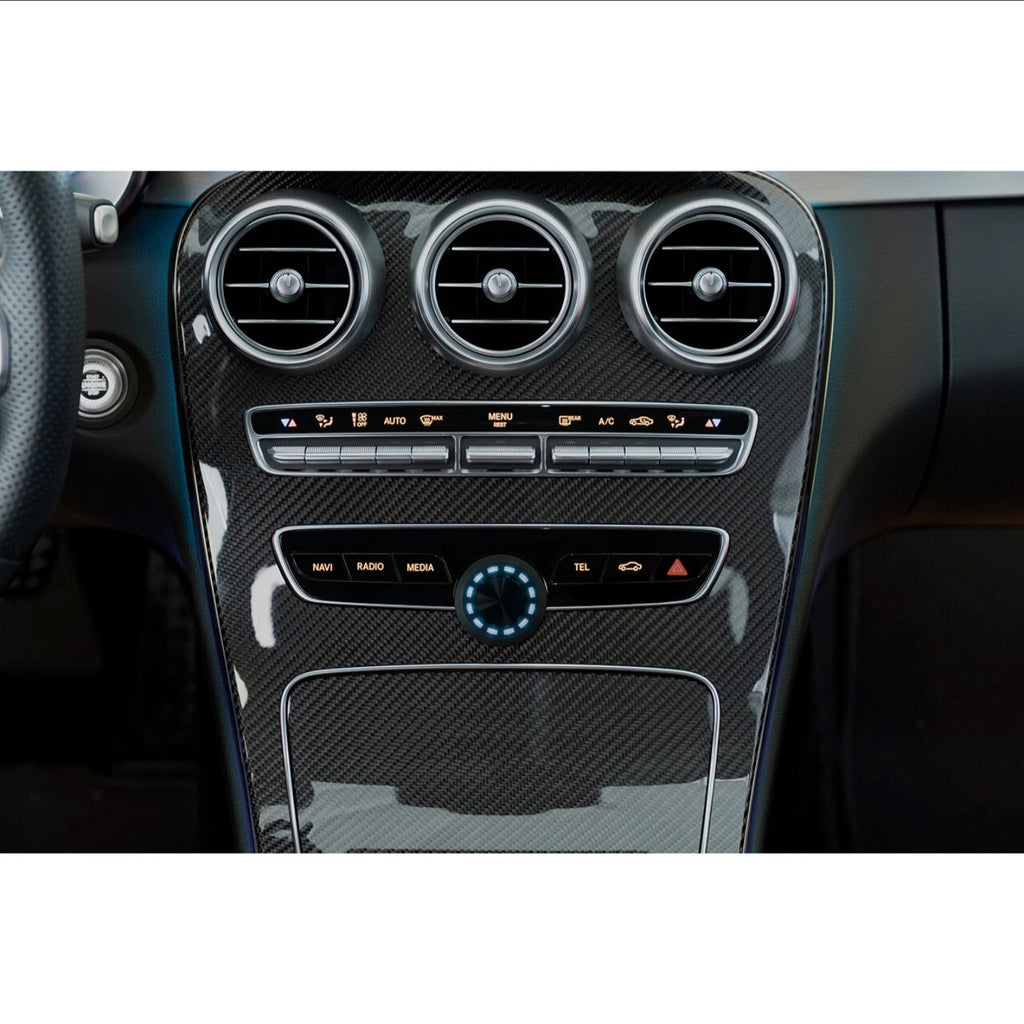

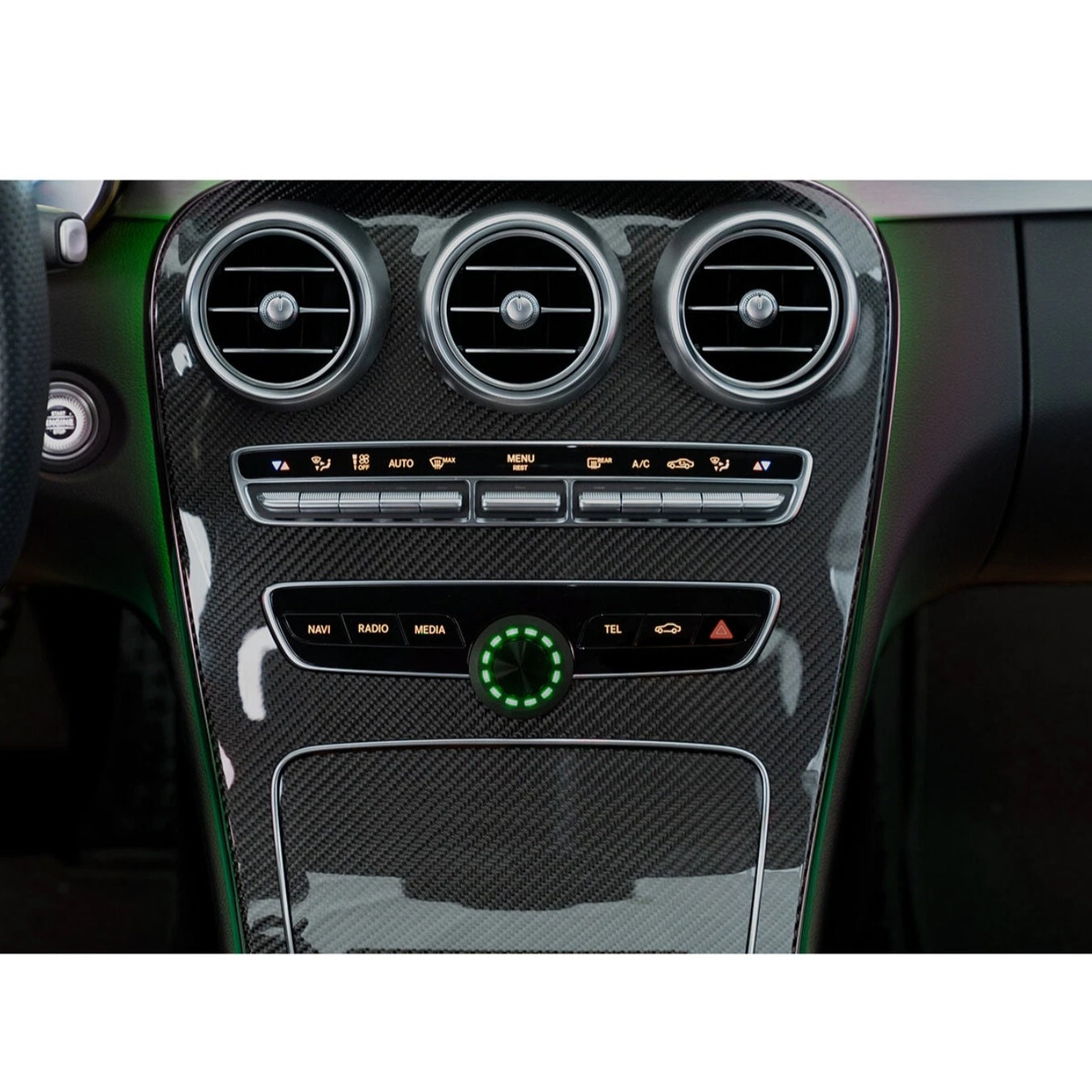

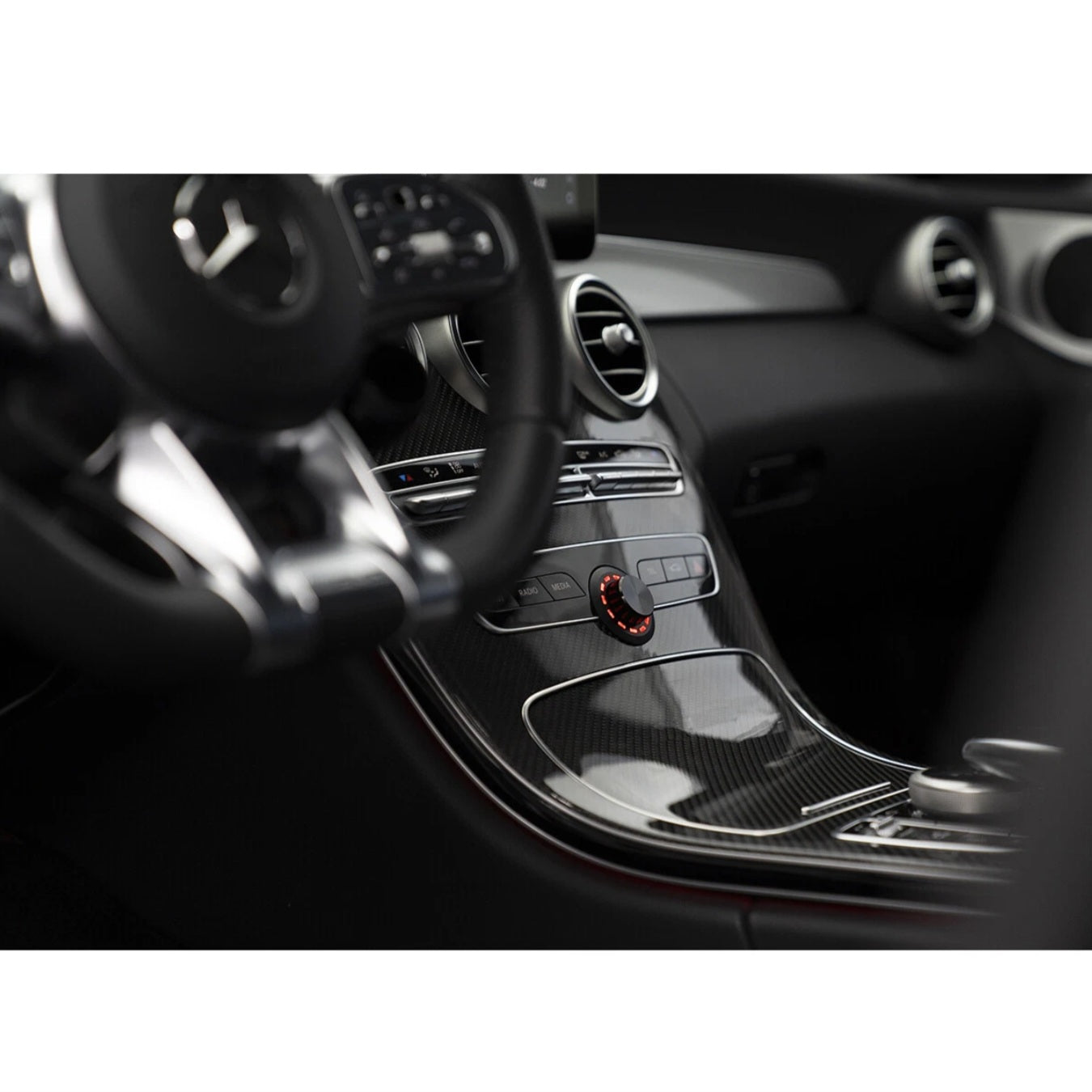

Thanks to its compact, fully symmetrical design and high-quality materials, the CONDUCTOR can be integrated almost seamlessly into the existing vehicle interior and blends in with its appearance as inconspicuously as an original part.

Features

Up to 4 individual volume menus configurable (Master, Digital, HEC/AUX, Subwoofer, Rear Attenuation)

Volume range selectable (60 dB, 24 dB, 12 dB)

Volume steps selectable (1 dB steps, 0.5 dB steps)

Individual color for each volume menu configurable

Sound Setup selection between all 10 memory slots

Intuitive Bluetooth playback control and pairing activation (only in combination with an optional Bluetooth Extension Card)

12 x RGB-LEDs for visual feedback

Wide color space with over 16 million colors

Brightness and automatic dimming function configurable

Easy installation

Flush mount installation with Ø 40 mm hole cut-out

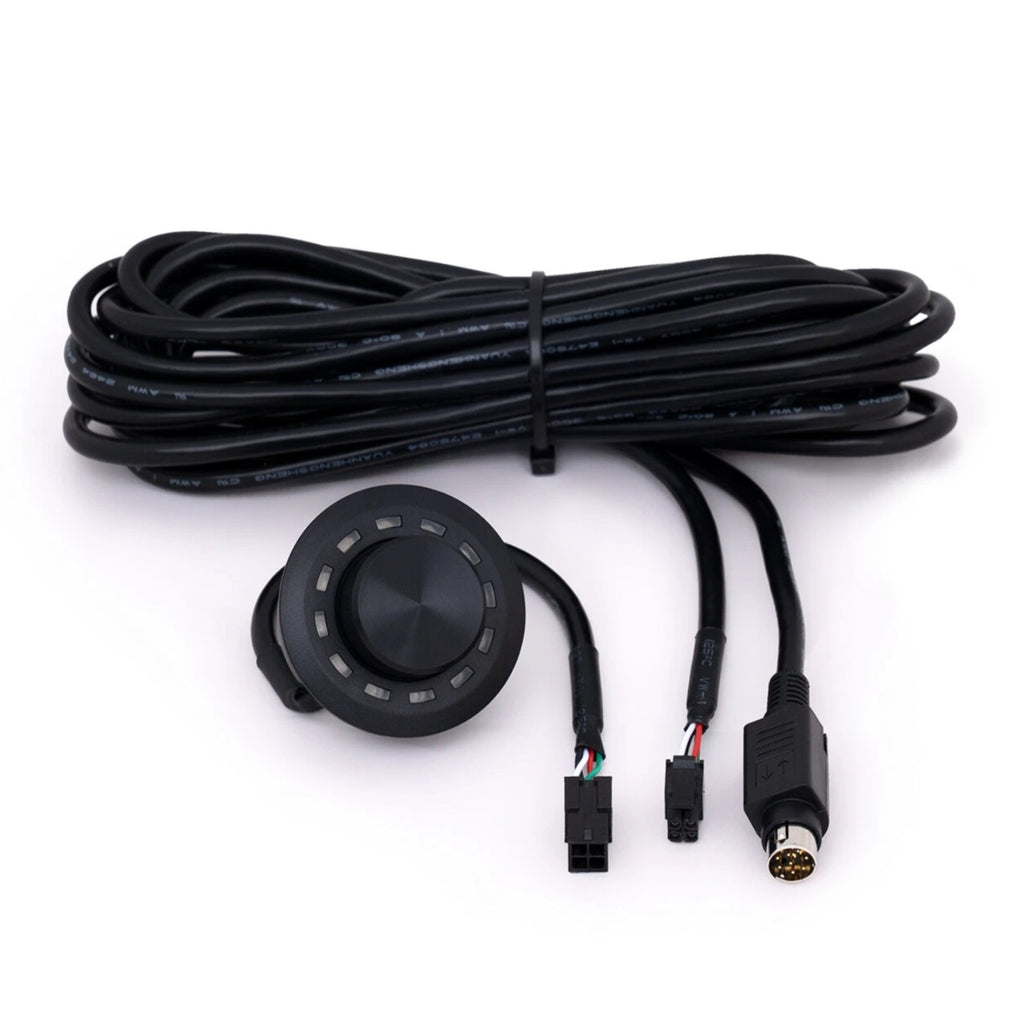

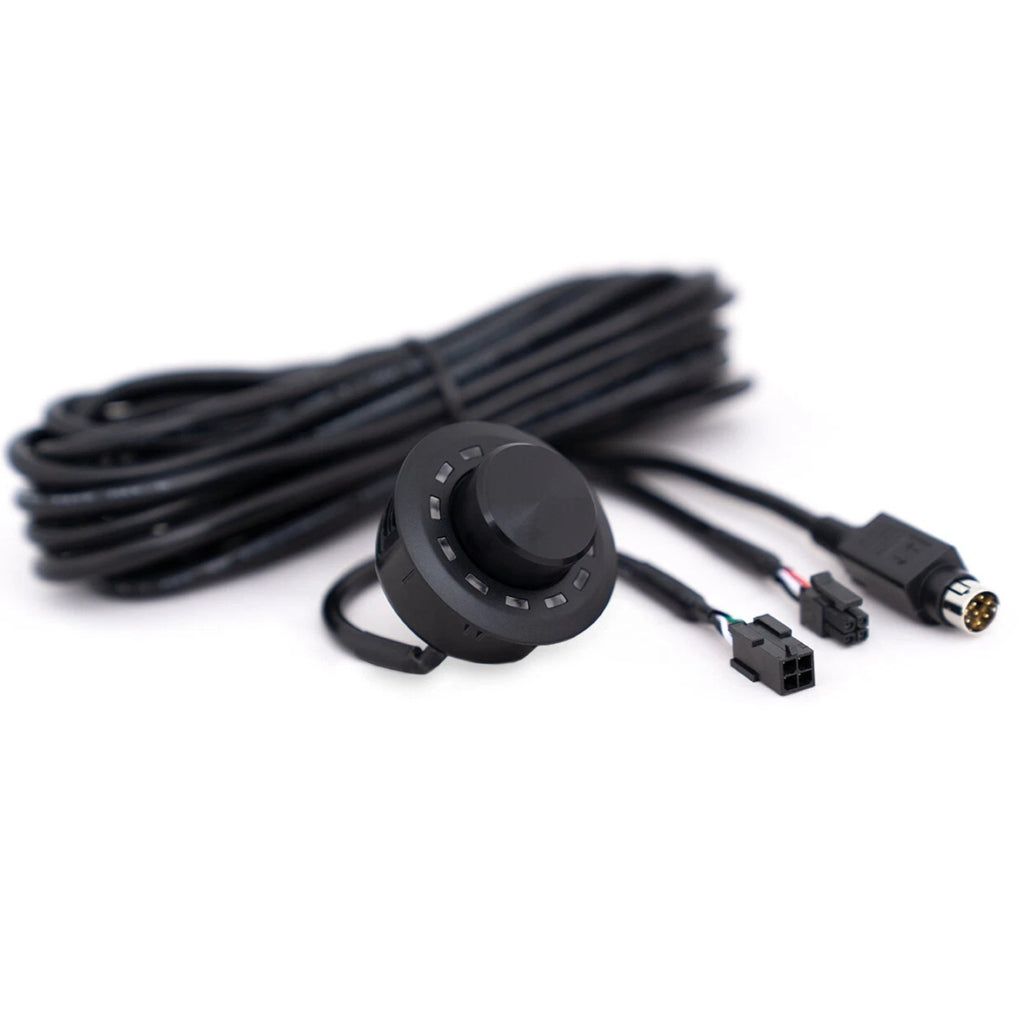

5 m cable harness with split connector and single connector supply

Optional housing for on-dash installation available soon

Full configuration and updatability through the DSP PC-Tool software

Technical data

Housing ABS housing with machined aluminum knob

Hardware Rotary encoder, 12 x RGB-LEDs & 48 MHz ARM processorr

Connection Single connector supply through MiniDIN or NanoFit

Cable length

5 m total length – split into 4.8 m connection cable + 0.2 m CONDUCTOR cable

ADimensions (Ø x H)

Ø 46 x 28.7 mm / Ø 1.81 x 1.13”

Compatibility

DSP PC-Tool 4.75a or higher

BRAX DSP

HELIX DSP ULTRA

DSP.3

DSP MINI

V TWELVE DSP

V EIGHT DSP MK2

M FOUR DSP

MATCH

M 5DSP MK2

Note: The CONDUCTOR is not compatible with the WIFI CONTROL or the DIRECTOR.

Scope of delivery

1 x Remote control CONDUCTOR

1 x 4.80 m connection cable
