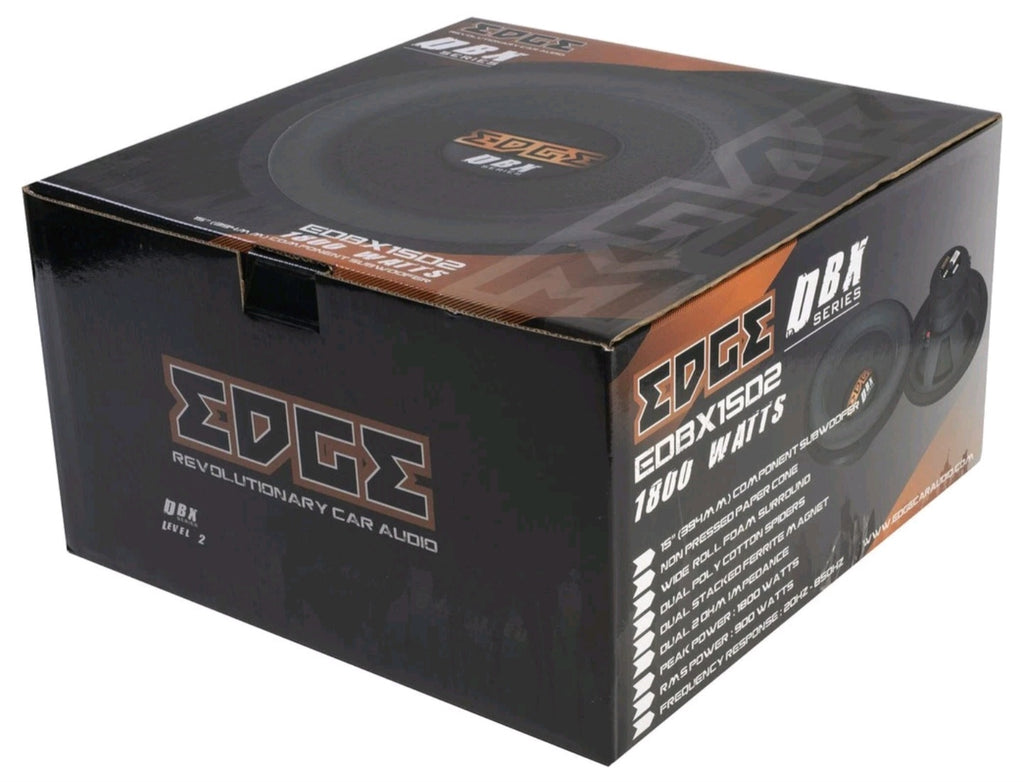

EDBX15D2-E0 | EDGE DBX Series 15 inch 1800 watts Subwoofer

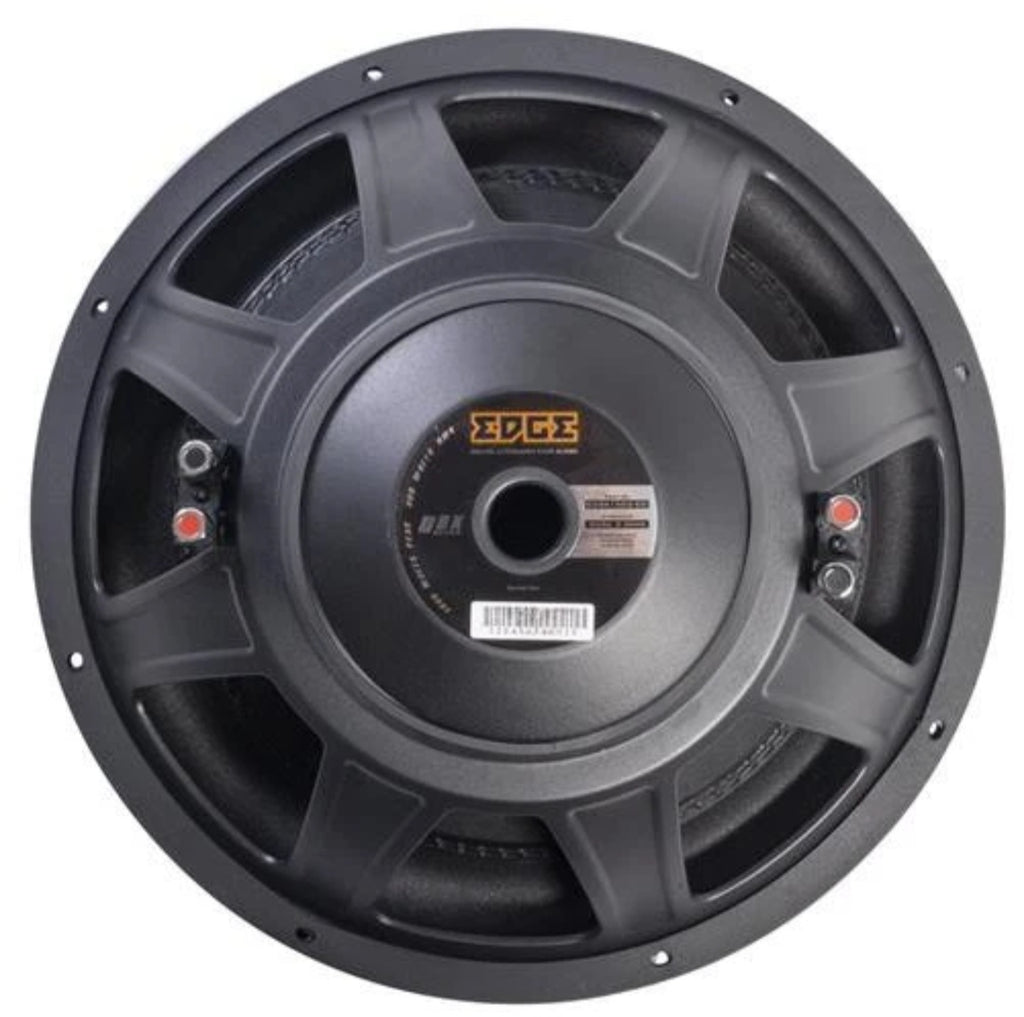

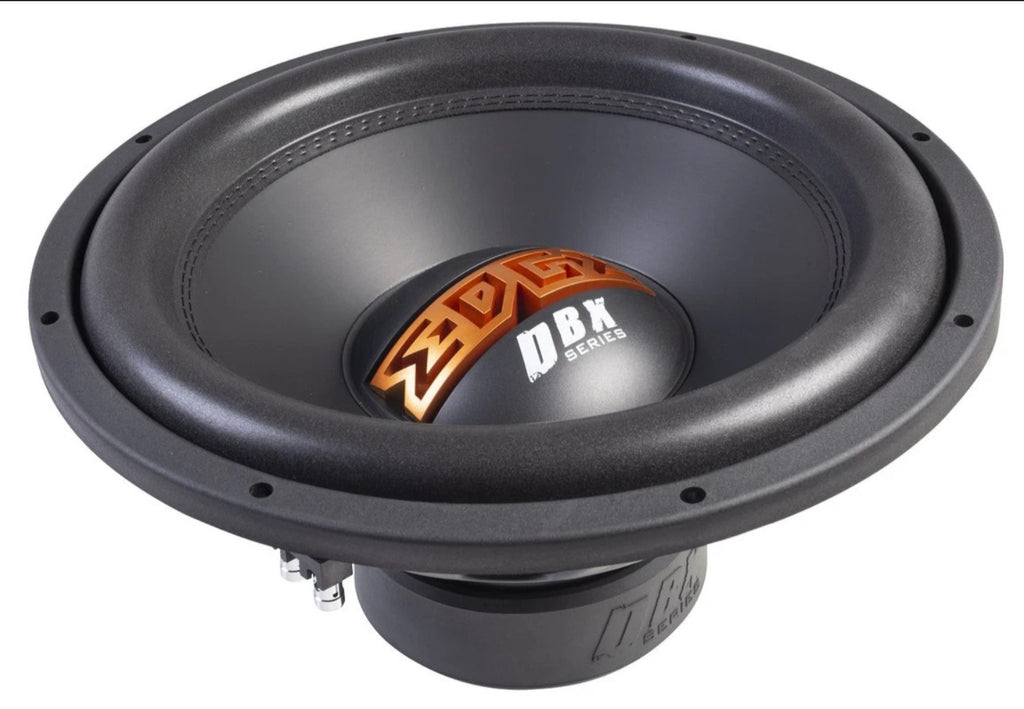

This new subwoofer range features our new unique 2 piece dustcap which in included across our entire range, the 2pcs cap gives added rigidity to the cone for stronger tighter bass. This Subwoofer has a pressed steel torsion basket and double stacked high quality ferrite magnets for a competent level of motor force, paired with the motor structure we use a 2.5Ó inch voice coil and a non-pressed paper cone and high roll surround we are able to produce efficient, strong, powerful and accurate bass reproduction.

The DBX subwoofers give great you that wonderful added depth and volume off bass missing from a car sound system, tailored to give high performance at a competitive price.

Features

Non pressed paper cone

Wide roll foam surround

100 oz dual stacked magnet

Spring loaded connectors

Y35 ferrite magnet

Dual 2 Ohms impedance

Double stitched surround

Specification

Model: EDBX15D2-E0

Cone: Non pressed paper cone

Surround: Big roll foam - dual stitched

Dustcap: Custom tooled IMPP

Voice Coil Former: 2.5" Black Aluminium

Spider: 2 layer

Gasket: Rubber

Top Plate: 10mm Black anodised

T-Yoke: 10mm Black anodised flat

Terminal / Wire: Spring loaded connectors

Impedance: Dual 2 Ohms

RMS Power: 900 watts

Peak Power: 1800 watts

TS Parameters

Equivalent Volume - Vas: 59L

Free Air Resonance - Fs: 33Hz

Mechanical Factor - Qms: 5.567

Electrical Factor - Qes: 0.897

Total Factor - Qts: 0.772

Moving Mass - Mms: 355g

Compliance - Cms: 64.24μ M/N

BI Factor - BI: 17.28 T

Voice Coil Inductance - Le: 2.3 mH

Diaphragm Area - Sd: 804CM2

DC Resistance - Re: 2*1.8 Ω

SPL: 86dB

Installation

Magnet: 156mm x 80mm x 20mm 2pcs

Overall Diameter: 358mm

Mounting Depth: 188mm
