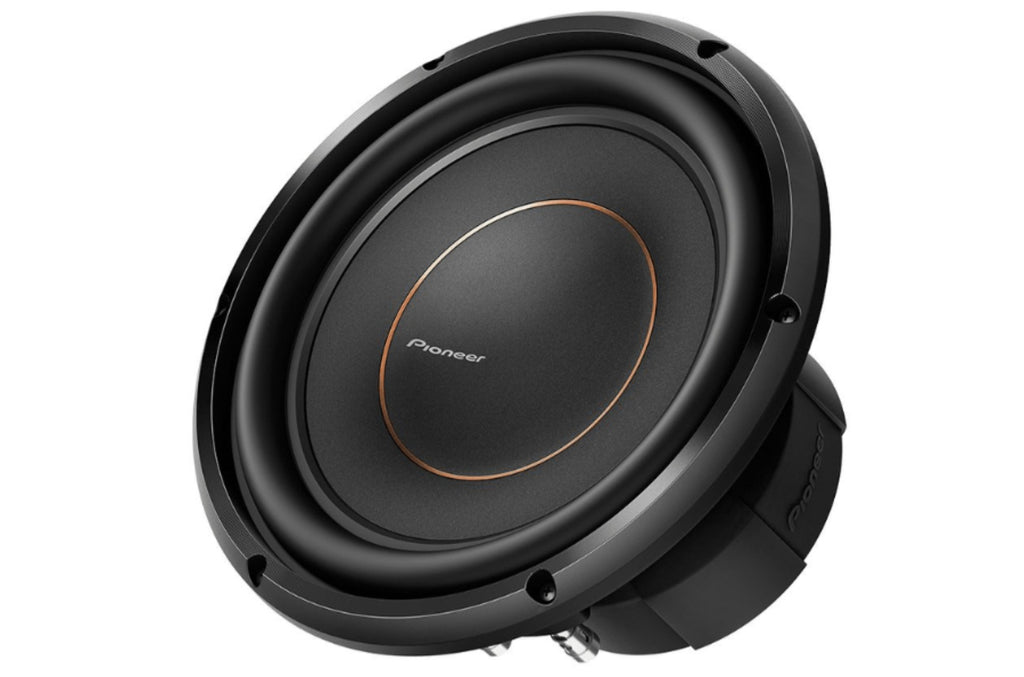

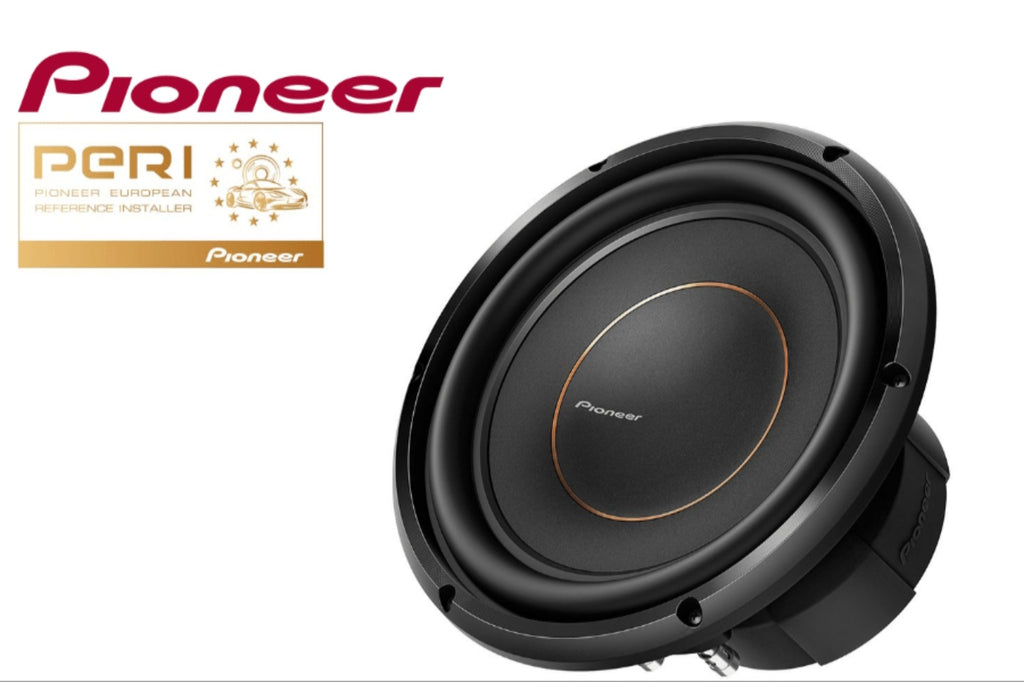

Pioneer TS-D10D2 - D-Series 10” Dual 2 Ohm Voice Coil Subwoofer 1500W

The Pioneer TS-D10D2 10" subwoofer is engineered to deliver powerful and precise bass in a compact design. Handling 500W RMS and peaking at 1500W, it offers flexibility with its dual 2-ohm voice coils, allowing for various wiring configurations to match your amplifier's specifications. The subwoofer's aramid fiber-infused IMPP™ cone provides exceptional strength and rigidity, reducing distortion and enhancing sound clarity.

Designed for versatility, the TS-D10D2 is compatible with both sealed (0.7 cu.ft.) and vented (0.8 cu.ft.) enclosures, making it suitable for a wide range of car audio systems. Its 74dB sensitivity ensures efficient power usage, while the 20Hz–6.6kHz frequency response delivers a broad range of bass frequencies. With a mounting depth of 140mm and a cut-out diameter of 230mm, it fits standard 10" subwoofer enclosures, making installation straightforward.

Key Product Features

Frequency response: 20 Hz - 6600 Hz

Impedance: 2 Ω Dual Voice Coil (DVC)

Maximum input power: 1500 W

Nominal input power: 500 W

Sensitivity: 74 dB

Series: D-Series

Diameter Size: 25 cm

Dimensions: 267 mm x 156 mm

IMPP™ Composite Cone

Magnets: Ferrite

Woofer material: Aramid Fiber Interlaced Injection Molded PolyPropylene (IMPP™) Cone

Cut-out Hole: 230 mm

Mounting Depth: 140 mm

Recommended Enclosure (ft³/litre): 0.7 / 19.81

Speaker Grill: Not Included

Weight: 4.06 kg
